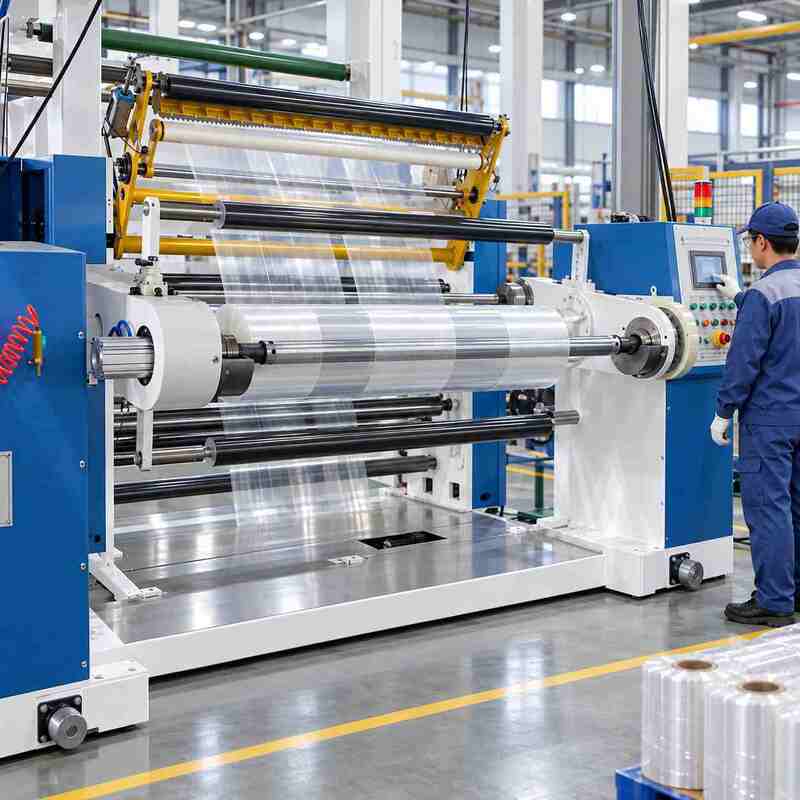

±100 mm EPC-Guided Film Coating Machine for Metallurgical Powder Packaging Fabric

Controlling Web Deviation During Coating

PP woven fabric passes through unwinding, preheating, extrusion lamination, cooling, edge trimming and rewinding. Continuous lateral deviation may cause unequal coating margins, changing trim positions or misaligned roll edges.

This ±100 mm EPC-Guided Film Coating Machine uses a photoelectric edge-position control system with a ±100 mm correction stroke. It monitors and adjusts the woven substrate position before the material enters the lamination section.

The EPC system controls lateral web position. It does not automatically control coating thickness or bonding performance.

How the EPC System Works

The sensor monitors the edge of the moving substrate. When the web moves away from its reference position, the controller sends a correction command to the guiding mechanism.

The sequence includes:

1. Detecting the substrate edge;
2. Comparing the actual and reference positions;
3. Sending a correction signal;
4. Adjusting the unwinding or guiding mechanism;
5. Returning the web to the specified path;
6. Maintaining alignment through trimming and rewinding.

The ±100 mm value describes the adjustment stroke. It does not mean that the process should operate continuously with 100 mm of deviation.

Processes Affected by Web Deviation

EPC cannot correct loose fabric, unsuitable web tension or poorly wound raw-material rolls. These conditions require separate tension and roll-quality control.

Application

The machine applies single- or double-sided PE or PP extrusion coating to woven fabric used for metallurgical powder packaging, including metal powder, mineral additives, metallurgical auxiliary materials and other dry industrial raw materials. The EPC system controls the lateral position of wide fabric as it passes through preheating, lamination, trimming and rewinding. Powder containment, moisture resistance, chemical compatibility, electrostatic control and dangerous-goods compliance must still be verified through the coating, liner, seams and finished packaging tests.

Technical Specifications

EPC Setup Checklist

Before coating production:

• Confirm that the raw roll edges are generally aligned;
• Check the position of the air-expanding shaft;
• Align the EPC sensor with the substrate edge;
• Set the required web centerline;
• Confirm the correction direction;
• Check for mechanical interference within the stroke;
• Run the line at low speed;
• Observe the substrate position at the die and rollers;
• Adjust unwinding tension to prevent slack;
• Recheck trimming and winding after increasing speed.

Acceptance Points

EPC acceptance should be not only confirm that the guiding mechanism moves. Testing with the actual metallurgical packaging substrate should check:

• Return of the web to its reference position;
• Relative uniformity of the coating margins;
• Stability of the trimming position;
• Alignment through both coating stages;
• Finished roll-edge alignment;
• Guiding behavior after line-speed changes.

FAQ

Does ±100 mm mean that 100 mm of web deviation is acceptable?

No. It is the correction stroke of the guiding mechanism. The substrate should normally remain close to the reference centerline.

Can EPC replace web-tension control?

No. EPC controls lateral position, while the tension system controls longitudinal force. Both systems must work together.

Does EPC control coating thickness?

No. Thickness depends mainly on extrusion output, die settings, line speed and resin condition.

Can the line directly produce anti-static metallurgical powder sacks?

Not based on the machine configuration alone. Anti-static performance depends on the substrate, coating, conductive structure and finished-sack testing.
