| Brand Name: | Cholly |
| Model Number: | CBJ-1350 |
| MOQ: | 1 |
| Price: | Negotiable |

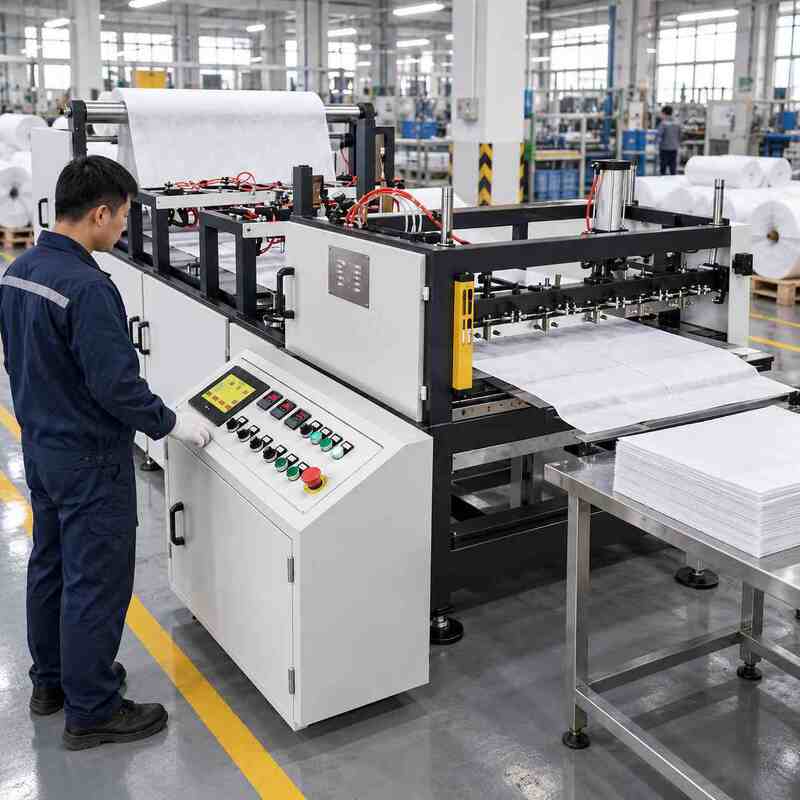

The CBJ-1350 FIBC Cutting Machine converts rolled FIBC base fabric into bag-body panels for subsequent sewing. It handles fabric up to 1350 mm wide and provides an adjustable cutting length of 300–6000 mm for different jumbo bag heights and structures.
A pneumatic roll-loading mechanism is provided for fabric rolls with a maximum diameter of 1100 mm. This configuration supports roll-fed cutting without relying entirely on manual roll lifting and fabric deployment.
The specified cutting accuracy is ±2 mm. In an FIBC assembled from several fabric panels, cutting length affects side-seam alignment, folded edges, and the matching of finished bag dimensions. The target length should therefore follow the approved bag drawing.
The ±2 mm value is the specified machine accuracy under defined operating conditions; it does not mean zero deviation with every material and speed setting. Fabric stretch, roll tension, hot-cutting temperature, and feeding condition can affect the finished dimensions. Trial cutting with the buyer’s material is recommended before batch production.
The CBJ-1350 is equipped with automatic web guiding, with a specified correction distance of 300 mm. The guiding mechanism adjusts the lateral fabric position before it enters the cutting area, reducing the effect of continuous web deviation on panel edges and opening positions.
Automatic guiding does not replace correct roll installation, tension setting, or routine inspection. The feeding position should be checked again whenever the fabric width or surface condition changes.
The machine supports cold or hot cross-cutting according to the required edge treatment of the PP woven fabric. The listed temperature-control value is 280°C. The actual setting should be adjusted according to fabric thickness, coating condition, and observed cut-edge quality.
Standard functions also include circular-hole and corner cutting within a 200–600 mm range. Optional modules include forward folding, forward-and-reverse folding, and cold/hot cutting configurations for different bag-body structures.
A safety light curtain protects the cutting position. It should be used together with operating procedures, lockout practices, maintenance controls, and operator training.
| Parameter | Specification |
|---|---|
| Model | CBJ-1350 |
| Machine type | Automatic FIBC fabric cutting machine |
| Maximum fabric width | 1350 mm |
| Cutting length | 300–6000 mm |
| Cutting accuracy | ±2 mm |
| Production capacity | 15–18 pieces/min at L=1000 mm |
| Maximum roll diameter | 1100 mm |
| Hole and corner cutting range | 200–600 mm |
| Web-guiding correction distance | 300 mm |
| Cutting method | Cross cutting, cold/hot cutting |
| Temperature control | 280°C |
| Total power | 8 kW |
| Power supply | 380/220 V, 50 Hz |
| Air pressure | 0.6–0.8 MPa |
| Machine dimensions | 7000 × 1600 × 1530 mm |
This FIBC Cutting Machine is mainly used for pneumatic roll loading, automatic web guiding, length cutting, and opening preparation of PP woven FIBC, jumbo bag, and bulk bag body panels. The 1350 mm fabric width is intended for standard bag-body panels, while the 200–600 mm hole and corner cutting range supports fabric that requires prepared spout openings or corner structures. Final panel dimensions, opening positions, and cutting methods should follow the buyer’s bag drawing.
| Item | Information to Provide |
|---|---|
| Fabric width | Actual roll width, not exceeding 1350 mm |
| Roll diameter | Maximum 1100 mm |
| Cutting length | Required value within 300–6000 mm |
| Material structure | Fabric weight and coated or uncoated condition |
| Edge requirement | Cold or hot cutting |
| Opening dimensions | Hole or corner cutting within 200–600 mm |
| Folding method | Forward or forward-and-reverse folding |
| Electrical conditions | Local voltage and frequency |
| Air supply | 0.6–0.8 MPa |
No. The PDF specifies 15–18 pieces/min at a cutting length of L=1000 mm. Actual output changes with cutting length, material condition, and additional processing steps.
No. ±2 mm is the specified cutting accuracy. Fabric stretch, roll tension, temperature, and feeding condition can still influence the finished result.
Folding is available as an optional module, including forward folding and forward-and-reverse folding. The required configuration should be confirmed according to the bag-body structure and production process.
