| Brand Name: | Cholly |
| MOQ: | 2000pcs |
| Price: | Negotiable |
| Delivery Time: | 10days |
| Payment Terms: | T/T, L/C |

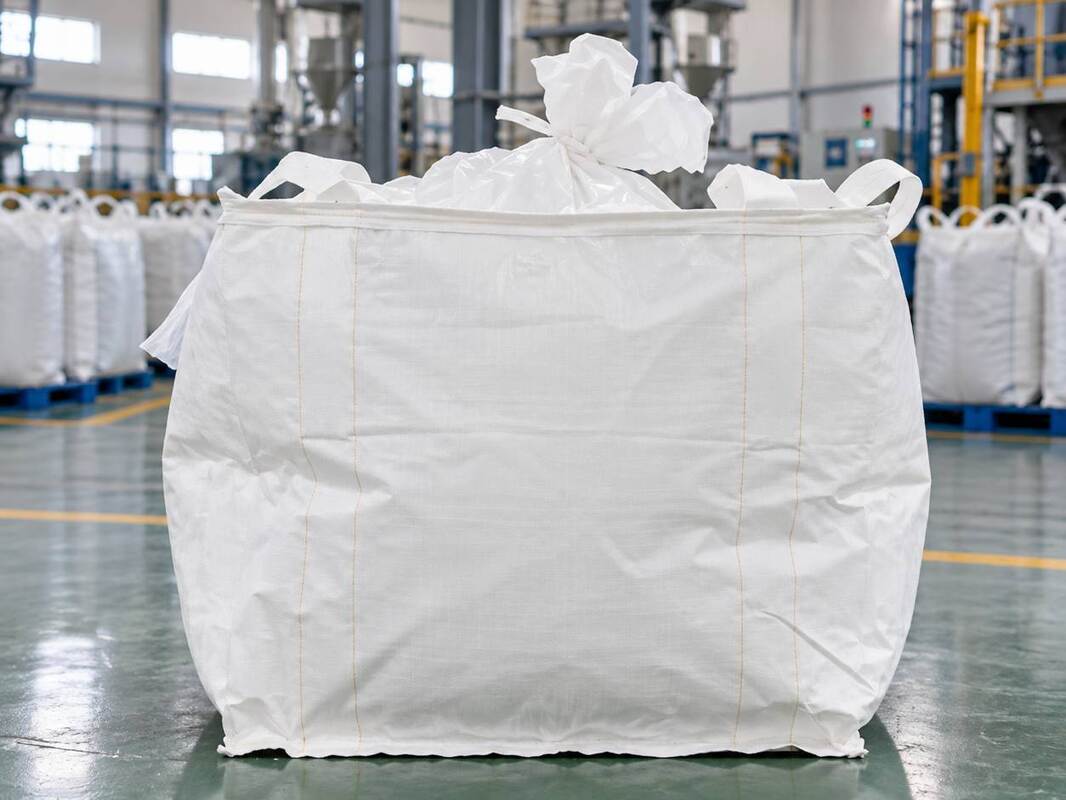

This Custom Size Lithium Carbonate FIBC Bag is configured according to the lithium carbonate bulk density, filling weight, equipment connections, discharge method and pallet dimensions rather than being limited to one standard bag size.
The existing configuration provides a reference of 108 × 108 × 125 cm dimensions, a 1,000 kg rated load and a 190 g/m² coated body. Configurable items can include:
Every customized configuration should be recorded in a separate production specification and verified through sample measurement, filling and equipment-connection tests before mass production.
The target filling weight and actual lithium carbonate bulk density must be established before defining the bag dimensions:
Required effective volume (m³) = target filling weight (kg) ÷ bulk density (kg/m³)
This calculation provides an initial volume reference. Final dimensions must also consider:
For a fixed pallet, the base dimensions should normally be established first, followed by the bag height required to provide the calculated volume.
The filling and discharge spouts should be designed around the customer’s equipment rather than selected only according to the bag capacity.
The standard reference construction includes:
When the outlet dimensions are changed, the bottom-panel opening, outlet stitching and equipment connection must be reviewed together.
Internal baffles restrain outward expansion after filling. The standard reference uses four 56 × 100 cm baffles made from 130 g/m² internally coated fabric.
The baffle configuration should consider:
Openings that are too small may restrict powder distribution, while excessively large openings may reduce the restraining effect. Customized designs should therefore be checked through sample filling and profile measurement.
When the dimensions, spouts or baffles are changed, the complete standard construction cannot automatically be carried over to the customized bag. The following items must be reviewed:
The standard reference fabric has a tensile requirement of ≥1,700 N/50 mm, while each lifting loop has a specified tensile requirement of ≥17,000 N. Their suitability should be reconfirmed if the bag dimensions or loading conditions change.
This Lithium Carbonate FIBC Bag is intended for projects where a standard bulk bag cannot directly match the packaging system, such as operations using non-standard pallets, filling outlets with different connection diameters, discharge stations requiring a specific outlet length, warehouses or containers with strict filled-bag dimensional limits, and battery-material production lines requiring defined feeding connections or residual-material control; configuring the body dimensions, filling spout, discharge spout and baffles separately allows the bag to be aligned with the customer’s filling, storage, transportation and unloading process.
| Configuration item | Standard reference | Information required for customization |
|---|---|---|
| Rated load | 1,000 kg | Target filling weight per bag |
| Bag dimensions | 108 × 108 × 125 cm | Bulk density, pallet and available space |
| Body fabric | 190 g/m², internally coated | Particle size, powder-control and operating conditions |
| Filling spout | Φ45 × 60 cm | Filling-machine outlet dimensions |
| Discharge spout | Φ40 × 55 cm | Equipment connection and powder flowability |
| Internal baffles | Four, 56 × 100 cm | Target filled-bag profile |
| Baffle openings | Upper/lower half openings and central U-shaped openings | Filling and discharge flow requirements |
| Lifting loops | Four, 7 × 151 cm | Forklift or lifting-equipment dimensions |
| Loop tensile requirement | ≥17,000 N per loop | Rated load and complete-bag test requirements |
| UV additive | 1% | Outdoor exposure period and test requirements |
| Separate liner | Not included in the standard sheet | Moisture, cleanliness and powder-control requirements |
Before quotation and sample production, provide:
