| Brand Name: | SINOPACK |
| Model Number: | SINA26011 |
| MOQ: | 1000PCS |
| Price: | Negotiable |
| Delivery Time: | 30dAYS |
| Payment Terms: | T/T |

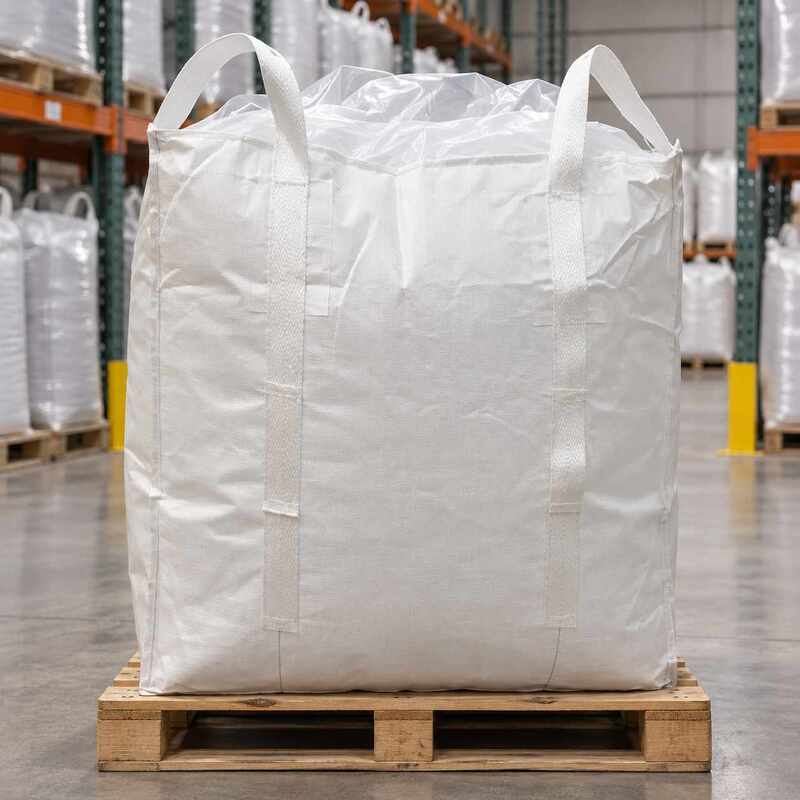

This silica fume FIBC bulk bag is designed for filling, storing, lifting, and discharging microsilica and other fine industrial powders. It combines a 180 g/m² uncoated woven body with an internal liner, four cross-corner lifting loops, a top filling spout, and a bottom discharge spout.
The base fabric contains 1% UV additive for applications where packaged materials may experience limited sunlight exposure during transportation or temporary storage. The actual outdoor exposure period should be determined according to the storage environment and UV-aging test requirements.
Silica fume has a fine particle size and can generate dust during filling, handling, and discharge. A conventional open-top bulk bag may provide insufficient control at the filling and unloading points.
This FIBC uses a bottleneck-style inner liner together with dedicated filling and discharge spouts. The structure helps isolate the powder from the outer woven fabric and supports connection with powder filling and unloading equipment.
The liner is secured at the top and bottom to help maintain alignment with the two spouts during operation.
The bag is equipped with four 7 × 140 cm cross-corner lifting loops. Each lifting position includes a 14 × 20 cm reinforcement patch.
The lifting loops extend 40 cm down the bag body and are secured using diamond-pattern stitching. The specified fabric strength is at least 1650 N in both warp and weft directions.
These values describe the fabric and sewing construction. The safe working load and safety factor must still be confirmed through the final order specification and complete-bag testing.
This silica fume FIBC bulk bag can be considered for:
| Specification | Details |
|---|---|
| Product type | Four-loop FIBC bulk bag with inner liner |
| Recommended material | Silica fume, microsilica and fine industrial powders |
| Finished bag size | 95 × 95 × 125 cm |
| Main body fabric | White woven circular fabric |
| Main body fabric weight | 180 g/m² |
| Main body coating | Uncoated |
| Warp strength | ≥1650 N |
| Weft strength | ≥1650 N |
| UV additive | 1% |
| Top panel | 105 × 105 cm, 160 g/m² uncoated fabric |
| Bottom panel | 105 × 105 cm, 160 g/m² uncoated fabric |
| Filling spout | Approximately Ø45 × 55 cm |
| Top opening | Ø39 cm |
| Discharge spout | Approximately Ø35 × 45 cm |
| Bottom opening | Ø30 cm |
| Spout fabric | 100 g/m² internally coated fabric |
| Lifting loops | Four cross-corner loops |
| Loop dimensions | 7 × 140 cm |
| Loop weight | 45 g/m |
| Reinforcement patches | Four pieces, 14 × 20 cm |
| Inner liner size | 100 × 100 × 135 cm |
| Liner thickness | 5丝, subject to unit confirmation before publishing |
| Liner structure | Top and bottom bottleneck openings |
| Stitch density | 9–12 stitches per 10 cm |
| Cleanliness requirement | Free from loose threads, oil, contamination and cutting debris |
| Rated load | To be confirmed according to the order |
| Safety factor | To be confirmed according to the order |
Bag dimensions and fabric strength cannot independently determine the safe working load. The required loading weight, material bulk density, lifting method, and safety factor should be confirmed before production.
The standard configuration uses an approximately Ø45 × 55 cm filling spout and a Ø39 cm top opening. Check the filling nozzle diameter, clamping method, and required spout length.
The approximately Ø35 × 45 cm discharge spout supports controlled bottom unloading. Its diameter and length should be selected according to the receiving hopper and required discharge rate.
The liner material, thickness tolerance, sealing method, and moisture-barrier requirements should be confirmed according to the silica fume condition and storage environment.
The fabric contains 1% UV additive. If the bags will be stored outdoors, specify the expected exposure time, geographic location, covering method, and required UV-aging standard.
