| Brand Name: | Cholly |
| MOQ: | 2000pcs |
| Price: | Negotiable |
| Delivery Time: | 10days |
| Payment Terms: | T/T, L/C |

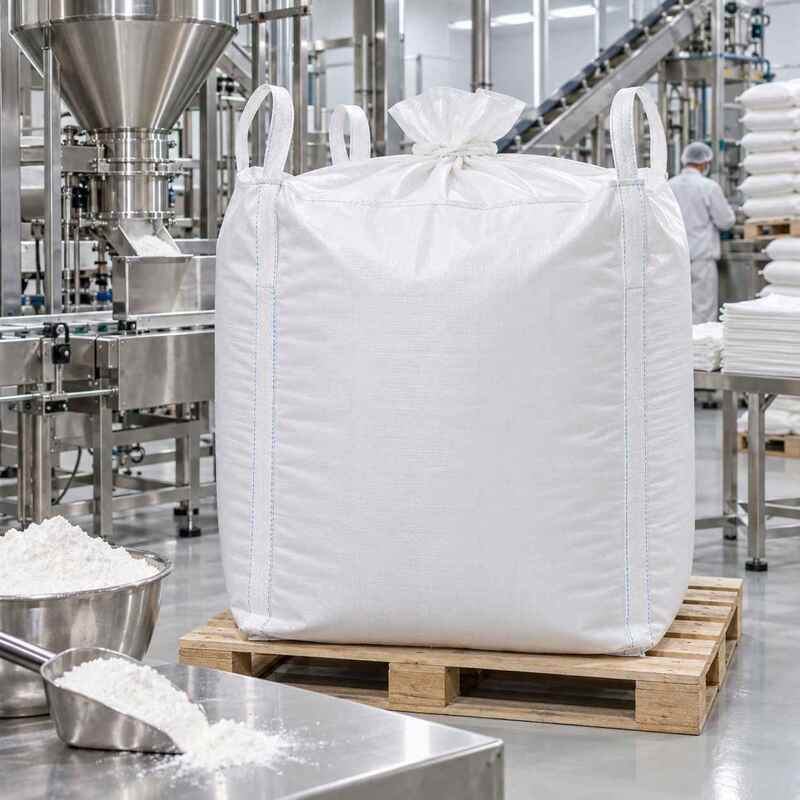

Food Grade Bulk Bags with 190g/m² PP Fabric for 1 Ton Starch Packaging
Food Grade Bulk Bags (FIBC Bags) are designed for bulk packaging, storage, and transportation of starch, food powders, and other food ingredients. For starch applications, the packaging needs to provide sufficient load capacity, cleanliness control, structural stability, and efficient handling. This 1 Ton Food Grade Bulk Bag uses white PP woven fabric with 190g/m² inner coated material for the bag body, top, and bottom. With a 1000kg loading capacity, reinforced lifting straps, and double needle chain stitching, it provides a practical packaging solution for starch and food powder transportation.
Problem
Main Challenges in Starch Packaging
Starch is a fine food powder material that requires reliable packaging performance during bulk transportation.
1. High Loading Stress During Transportation
Industrial starch is commonly packed in 1 Ton bulk bags.
When the loading capacity reaches 1000kg, lifting areas, seams, and bottom structures experience concentrated stress.
Insufficient fabric strength or unsuitable sewing structures may affect bag stability during handling.
2. Strict Cleanliness Requirements for Food Powder
Since starch is widely used in food processing, packaging cleanliness is important.
Potential issues include:
Internal residues;
Loose threads;
Oil contamination;
Cutting debris.
These factors may influence packaging suitability.
3. Compatibility with Industrial Handling Systems
Large starch factories normally use automatic filling equipment, forklifts, and lifting systems.
The bulk bag design needs suitable filling spouts, discharge spouts, and lifting structures.
Cause
Material Structure Affects Bulk Bag Performance
The performance of a Food Grade FIBC Bag depends on fabric strength, coating structure, and manufacturing process.
This product uses:
White PP woven fabric;
190g/m² inner coated bag body;
190g/m² inner coated top;
190g/m² inner coated bottom.
The inner coating structure helps reduce direct contact between powder materials and woven fabric.
Sewing Technology Affects Structural Stability
Main stress areas of bulk bags include:
Lifting strap connections;
Side seams;
Bottom load-bearing areas.
The bag uses double needle chain stitching with reinforcement strips.
The connection areas between the bag body, top, and bottom are reinforced to improve structural consistency.
Production Control Affects Food Packaging Quality
Food packaging requires strict production control.
The production requirements include:
No internal residue;
No loose threads;
No contamination;
No oil stains;
No cutting debris.
The sewing standard is controlled at:
10 stitches / 10cm
Solution
This Food Grade Bulk Bag is designed for starch packaging applications by combining PP fabric structure, inner coating, reinforced lifting design, and controlled sewing processes.
1. 1000kg Bulk Loading Design
Loading Capacity:
1000kg / 1 Ton
Suitable for:
Starch;
Food powders;
Food processing ingredients.
2. 190g/m² Inner Coated PP Fabric
The bag uses:
190g/m² White PP Fabric with Inner Coating
The inner coating structure helps reduce direct powder contact with woven fabric and supports cleaner food powder packaging.
3. Reinforced Lifting Structure
Features:
4 lifting straps;
4 reinforcement belts;
Double needle chain stitching.
Lifting strap size:
5×170cm
Reinforcement belt size:
55×90cm
This structure is suitable for lifting and forklift transportation applications.
Technical Specifications
|
Parameter |
Specification |
|---|---|
|
Product Type |
Food Grade FIBC Bulk Bag |
|
Application |
Starch Packaging |
|
Loading Capacity |
1000kg / 1 Ton |
|
Bag Size |
100×100×110cm |
|
Warp Fabric Strength |
≥1650N |
|
Weft Fabric Strength |
≥1650N |
|
Bag Body Material |
White PP 190g/m² with Inner Coating |
|
Top Material |
White PP 190g/m² with Inner Coating |
|
Bottom Material |
White PP 190g/m² with Inner Coating |
|
Filling Spout |
183×63cm |
|
Discharge Spout |
183×63cm |
|
Lifting Straps |
4 pcs |
|
Strap Size |
5×170cm |
|
Reinforcement Belts |
4 pcs |
|
Reinforcement Size |
55×90cm |
|
Sewing Standard |
10 stitches/10cm |
Application
Starch Industry Applications
This Food Grade Bulk Bag is suitable for various starch and food powder packaging applications.
Corn Starch Packaging
Used for:
Bulk packaging;
Storage;
Export transportation.
Potato Starch Packaging
Suitable for large-volume powder handling and mechanical transportation.
Food Ingredient Packaging
Applicable for:
Food powder ingredients;
Food additives;
Food processing materials.
Industrial Logistics
Compatible with:
Automatic filling systems;
Lifting equipment;
Forklift handling.
Selection Guide
Select According to Loading Capacity
For industrial starch transportation:
Recommended:
1 Ton Food Grade Bulk Bag
Make sure the actual filling weight matches the designed loading capacity.
Select According to Powder Characteristics
For fine powder materials, consider:
Inner coating requirements;
Powder protection needs;
Discharge design.
Select According to Handling Method
Automatic filling:
Check filling spout dimensions.
Automatic discharge:
Confirm discharge spout structure.
Lifting transportation:
Check lifting strap quantity and design.
