| Brand Name: | Cholly |
| MOQ: | 2000pcs |
| Price: | Negotiable |
| Delivery Time: | 10days |
| Payment Terms: | T/T, L/C |

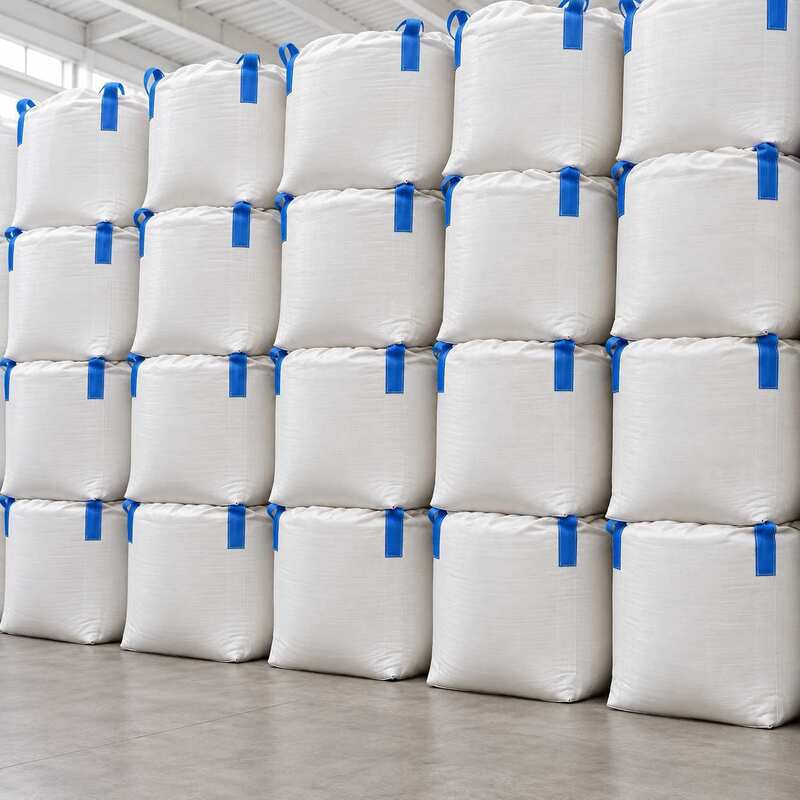

These Graphite Powder FIBC Bags combine a 180 g/m² uncoated outer body with an independent inner liner. The bag has a rated loading capacity of 1000 kg and finished dimensions of 95 × 95 × 125 cm.
The uncoated woven body forms the primary outer load-bearing structure together with the lifting loops, reinforcement patches and seams. The inner liner separates the graphite powder from the outer woven fabric. This configuration is intended for filling, production transfer, temporary storage and bulk transportation of graphite powder.
Overseas buyers may also search for these products as Graphite Powder Jumbo Bags or Graphite Powder Bulk Bags. Regardless of the search term used, the product should be described according to its actual outer-body, liner and spout configuration. The presence of an inner liner alone does not prove that the complete bag is moisture-proof.
| Structural part | Primary function | Documented specification | Limitation |
|---|---|---|---|
| Outer body | Forms the main outer load-bearing structure | 180 g/m² tubular double-warp fabric | Uncoated and not an independent moisture barrier |
| Top and bottom panels | Connect the body and spout structures | 160 g/m² uncoated fabric | Not a fully coated bag construction |
| Independent inner liner | Separates graphite powder from the woven fabric | 100 × 100 × 135 cm | Liner material and vapor-barrier data are not stated |
| Filling spout | Connects with powder-filling equipment | 100 g/m² internally coated spout fabric with tie | Equipment interface must be checked |
| Discharge spout | Releases material into receiving equipment | 100 g/m² internally coated spout fabric with tie | Not verified as completely dust-free |
| Four lifting loops | Transfer the filled load to lifting equipment | 7 × 140 cm cross-corner loops | All four loops should carry the load evenly |
The 180 g/m² value describes the fabric weight of the outer body. It does not describe the liner thickness or establish a moisture-resistance rating for the complete package.
An independent liner reduces direct contact between the graphite powder and the outer woven fabric. It can also help limit the entry of external contaminants during normal packaging operations.
Actual moisture-barrier performance, however, depends on several factors:
The production sheet specifies the liner dimensions and structure but does not identify PE or HDPE material. It also provides no moisture-barrier test data. The appropriate product description is therefore with inner liner, rather than waterproof or completely moisture-proof.
These 180 g/m² uncoated bags are intended for operations in graphite-processing plants, carbon-material facilities and industrial powder warehouses, including:
Buyers searching for Graphite Powder Jumbo Bags commonly focus on rated load, lifting structure and handling convenience. Buyers using the term Graphite Powder Bulk Bags may place greater emphasis on storage, transportation, liner configuration and equipment compatibility.
Both search intentions can be addressed on this page, but unverified anti-static, waterproof or leak-proof claims should not be added.
| Specification | Configuration |
|---|---|
| Product name | Graphite Powder FIBC Bag |
| Rated load | 1000 kg |
| Finished dimensions | 95 × 95 × 125 cm |
| Body fabric | 180 g/m² tubular double-warp fabric |
| Body coating | Uncoated |
| Fabric strength | Warp ≥1650 N; weft ≥1650 N |
| Top and bottom fabric | 160 g/m² uncoated fabric |
| Inner liner dimensions | 100 × 100 × 135 cm |
| Lifting structure | Four cross-corner lifting loops |
| Loop dimensions | 7 × 140 cm |
| Loop weight | 45 g/m |
| Reinforcement patches | Four pieces, 14 × 20 cm |
| Filling system | Top filling spout with tie |
| Discharge system | Bottom discharge spout with tie |
| UV additive | 1% |
| Stitch density | 9–12 stitches per 10 cm |
Under the intended configuration, the graphite powder is contained inside the independent liner. The liner should be correctly positioned and inspected for damage before filling.
No. It is the fabric weight of the outer bag body. The document provides the liner dimensions but does not confirm its material or thickness in an internationally publishable unit.
Not based on the available information. No liner-material specification, water-vapor transmission value or sealing-performance test is provided.
No anti-static additive, conductive construction or electrostatic classification is documented. It should not be promoted as an anti-static FIBC.
