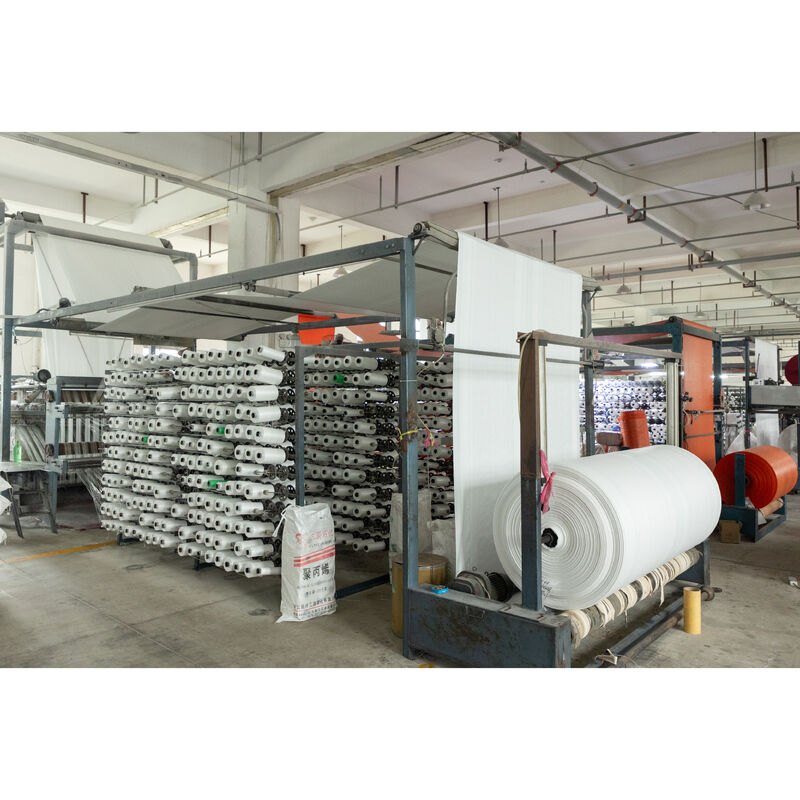

Model:HLDC-1400-6S,Each machine consists of the following:
1,Main body of the circular loom(including machine frame,lifting cloth device
and electrical cabinet )
2,Warps frame:two sets(spare parts,to be assembled on site)
3,Winder torque motor:two set
4,Let- off motion device:two sets(spare parts,to be assembled on site)
|
YANTAI HAILIDE MACHINERY |
free spare parts list |
Remarks
|
||
|
HLDC-1400-6S |
||||
|
NO. |
Figure No. |
Name |
Quantity |
|
|
1 |
|
Connecting rod |
2 |
|
|
2 |
|
brown belt |
2 |
|
|
3 |
|
Connecting rod shaft |
2 |
|
|
4 |
|
Cam roller |
2 |
|
|
5 |
|
Shuttle-pushing device |
1 |
|
|
6 |
|
Shuttle side wheel |
4 |
|
|
|
|
|
|
|
Main parts manufactures:
|
名称 |
规格/型号 |
数量 |
供货厂商 |
备注 |
|
Main motor frequency converter |
7.5KW/EN600-4T0075G |
1 |
yineng |
|
|
Lifting cloths servo driver |
1KW/CTSD A4S-B1025-M101 |
1 |
hexin |
|
|
Lifting cloths servo motor |
1KW/CTSD-M2D-B102A-M200 |
1 |
hexin |
|
|
Winder servo driver |
0.75KW/CTSD A4S-B7515-M101 |
2 |
hexin |
|
|
Winder servo motor |
0.75KW/CTSD-M18-B751A-H100 |
2 |
hexin |
|
|
Let -off Pulse step controller |
0.75KW/DV3722C |
2 |
chaoqun |
|
|
Let -off Pulse step motor |
0.75KW/110HCY160 |
2 |
chaoqun |
|
|
Programmable Logic Controller(PLC) |
CTH226 |
1 |
Hexin |
|
|
Touch display screen |
7寸 |
1 |
fujian |
|
|
fan |
TA-400 |
1 |
Shanghai yingda |
|
|
shuttle |
1400-6S |
6 |
Shenyang deren |
|
|
Shuttle pushing device |
|
6 |
Hailide |
|
Machine model:HLDC-1400-6S
Revolution of the motor: 115r/min
Power of main motor: 5.5kw
Number of shuttles: six
Track width: 130mm
Production width: 950mm－1300mm
Density of wefts: 8-16piece/hour
Production speed: 68m/h-135m/h
Number of warps: 1632pieces
Max. Diameter of warp: 140mm
Max. Diameter of weft: 105mm
Let- off motion device: Pulse step motor control
Warp broken control: Broken by the automatic stop
Weft broken control: blueteeth type warp/weft stops
Tube size: as required
Winder device: two set
Winder width: 1300mm
Max. Diameter of winder: 1200mm
Equipment dimension: (L)15.1mX(W)3.16mX(H)4.2m
Equipment weight: about 4T
Machine features:
1,This machine adopts Pulse step motor control, can double split winding with the number of warp up to 1632,Its suitable for making of high-density woven bags, high fiber jumbo bags and geotextiles.
2,With blueteeth type weft detector, its sensitive and reliable, and free from dust and lighting effects, safe and reliable, it can track warp broken, weft broken and automatically stop the machine, with lower inferior quality products.
3,It uses self-contained lubrication cycle to improve the mechanical efficiency of operations, with the oil clogging alarm device to avoid abnormal wear parts.
4,Its reasonable structure and high reliability can ensure less wearing parts and easy maintenance with low maintenance costs.
5,Its frequency control can provide smooth start and reliable operation.
6. Lifting cloth with steel roller embossing rubber extrusion and PLC programming control, as well as independent lifting device.
Service(Machine installation,debugging and training)
1. Costs will be borne by buyer if installation and debugging is needed.
2. One-wearing parts have a one year warrantee. Warranty services of repair, replacement and refund for quality problems caused by improper use under guarantee are provided.
3. We provide Lifelong technical service.
